CYP 100m HDBaseT 2.0 Slimline Wall Plate Receiver - 4K, HDCP2.2, PoH, LAN, OAR, USB
4K, HDCP2.2, PoH, LAN, OAR, USB
|

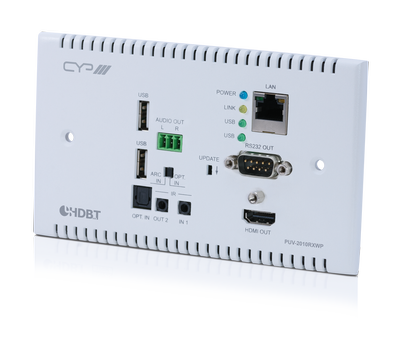

PUV-2010RXWP 100m HDBaseT™ 2.0 Wall Plate Receiver (4K, HDCP2.2, PoH, LAN, OAR, USB)
PUV-2010RXWP
ThePUV-2010RXWP UK Wall Plate Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m. Utilising the latest HDBaseT™ 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding of installation environments. In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
This system also allows the connection of any USB host, enabling a USB 2.0 connection to 2 x USB ports, giving the PU-2010RXWP Receiver the ability to act as a USB hub.
This wall plate variant of the PUV-2010RX receiver enables seamless integration into a standard UK double-gang back box.
Features:
- Supports full HDBaseT™ 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
- HDCP 2.2, HDMI and DVI compatible
- HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical audio return (OAR)
- Supports optical sampling rate up to 48kHz
- Audio return channel (ARC)
- Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
- Receiver features 2 x USB 2.0 ports
- Fits in a standard UK standard double-gang back-box
Specifications:
Inputs
- 1x RJ45 [1x HDBaseT 2.0 HDMI & Propriety Data]
- 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
Outputs
- 1x HDMI [1x HDMi Uncompressed AV and Data]
- 1x USB Type A [1x USB Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x Phoenix (3 pin) [1x Stereo (L/R) Audio Output]
- 1x 9pin Dsub [1x RS-232 Data]
POE PSU:
Dimensions
- 90mm [W] x 156mm [D] x 42mm [H]
Net Weight
Gross Weight
